Default Wedding Chest

This is a project that I have been working on and off since July. I guess I suffered from designer's block as I wanted to make the top different from the one I made a couple of years ago. http://i131.photobucket.com/albums/p...m/DCP_0322.jpg

I did finally settle on a design and got it completed in time to give it to my new daughter-in-law for Christmas. The design idea evolved from Joe Groat's toy box he once posted.

The project is all solid cherry except the bottom which is cherry ply. I used Olympic American Cherry stain and finished with Watco clear lacquer.

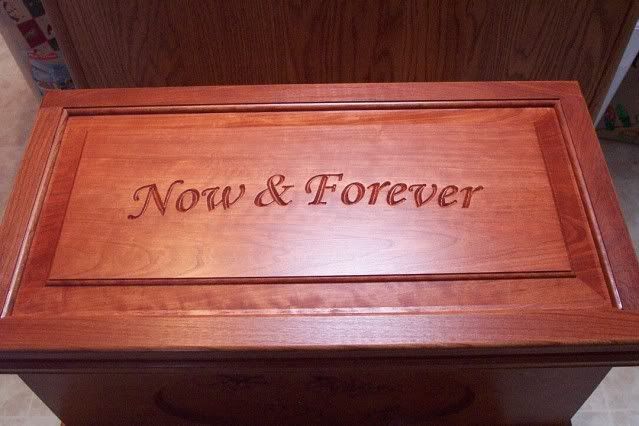

The hearts are created using a purchased pattern and the lettering was done using centerline on the Compucarve.

The lid is a floating raised panel. Over the length of this project the lid developed a slight bow that was corrected by adding a shim under one end of the piano hinge and then using felt bumper pads. This was done after the picture was taken

I made all the molding in my shop which was a new first for me.

This was the last project of the year and now I must work on cleaning and organizing.

Thanks for looking and comments are more than welcome. I have no idea what kind of time I have in this project as it was spread out over many months.



Attached Thumbnails
Click image for larger version

Name:	DCP_0779.jpg
Views:	98
Size:	73.5 KB
ID:	3601  Click image for larger version

Name:	DCP_0780.jpg
Views:	113
Size:	87.9 KB
ID:	3602  Click image for larger version

Name:	DCP_0790.jpg
Views:	115
Size:	81.2 KB
ID:	3603  Click image for larger version

Name:	DCP_0793.jpg
Views:	110
Size:	73.0 KB
ID:	3604
Reply With Quote
  #2
Old Posted 12-29-2009, 08:27 PM in reply to router-jim's post "Wedding Chest"
Harry's Avatar
Harry Harry is offline
Moderator

Join Date: Oct 2007
Location: EasternWashington
Posts: 8,795
Default

Looks nice, RJ. How difficult was it to install those lid supports? I tried them once and could not get them located so they'd work properly.
Reply With Quote
  #3
Old Posted 12-29-2009, 08:36 PM in reply to Harry's post starting "Looks nice, RJ. How difficult was it..."
router-jim's Avatar
router-jim router-jim is offline
Mentor and Moderator

Join Date: Oct 2007
Location: Central Wis
Posts: 5,282
Default

Quote:
Originally Posted by Harry View Post
Looks nice, RJ. How difficult was it to install those lid supports? I tried them once and could not get them located so they'd work properly.

Thanks Harry.

The left lid support went in quite well, the right one gave me a bit of a challenge as it was binding ever so slightly when closing. I had to move the hole in the lid about 1/32" to the left. I was able to disquise that flaw with epoxy and cherry sawdust.
__________________
---------------------------------------------------
You're not paranoid if they really are out to get you.
Reply With Quote
  #4
Old Posted 12-29-2009, 09:01 PM in reply to router-jim's post starting "Thanks Harry. The left lid support..."
JJOLD's Avatar
JJOLD JJOLD is offline
"World Renowed Woodworker"

Join Date: Mar 2009
Location: Western Pa, Usa
Posts: 4,684
Default

Nice job, pretty wood love good cherry stock.

Warning if one cleans the shop one will not find stuff for the first month, better to leave it be and tell all "Hey it is a working shop"
__________________
An empty coffee cup is just wrong.
Reply With Quote
  #5
Old Posted 12-29-2009, 09:02 PM in reply to router-jim's post "Wedding Chest"
Lorax's Avatar
Lorax Lorax is offline
Our lil SOB

Join Date: Oct 2007
Location: WNY
Posts: 4,461
Default

Beautiful.
Love the designs, dovetails, moldings, and finish.
What are the dimensions?
__________________
Confusion is my default setting... Harry 9/19/09
You've got a nice set, Lorax...Joann 6/27/11
Reply With Quote
  #6
Old Posted 12-29-2009, 09:06 PM in reply to Lorax's post starting "Beautiful.:yes: Love the designs,..."
router-jim's Avatar
router-jim router-jim is offline
Mentor and Moderator

Join Date: Oct 2007
Location: Central Wis
Posts: 5,282
Default

Thanks JJ and Lorax.

The base without the moldings is pretty close to 12" x 24" x 12".
__________________
---------------------------------------------------
You're not paranoid if they really are out to get you.
Reply With Quote
  #7
Old Posted 12-29-2009, 10:22 PM in reply to router-jim's post starting "Thanks JJ and Lorax. The base..."
stwoodie's Avatar
stwoodie stwoodie is offline
Moderator / Man of many talents

Join Date: Oct 2007
Posts: 8,664
Blog Entries: 1
Default

Very nice Jim.
__________________
*I doubt I get invited to sit at the Royal Table*
TowMater 2/9/09


Reply With Quote
  #8
Old Posted 12-30-2009, 12:23 AM in reply to stwoodie's post starting "Very nice Jim. ;)"
Jacko's Avatar
Jacko Jacko is offline
Amatuer Clampaholic

Join Date: Dec 2008
Posts: 3,863
Default

I like it too!
Reply With Quote
  #9
Old Posted 12-30-2009, 03:56 AM in reply to Jacko's post starting "I like it too!"
cfiddlemls's Avatar
cfiddlemls cfiddlemls is offline
Mentor / Moderator

Join Date: Sep 2008
Location: Hammond, IN.
Posts: 4,482
Blog Entries: 2
Default

Like the grapes and hearts,,
__________________
Remember that with your skill
you sign your work
Reply With Quote
  #10
Old Posted 12-30-2009, 01:27 PM in reply to cfiddlemls's post starting "Like the grapes and hearts,, :yes::yes:"
John Fry's Avatar
John Fry John Fry is offline
WW Operations Director and Mentor

Join Date: Aug 2008
Location: Acton, California
Posts: 1,747
Default

This is a really neat small chest, Jim.

It is amazing how much your CNC work "adds" to the character of the chest.

Nice job!
__________________
John

Chisel And Bit
Custom Crafted Furniture
www.chiselandbit.com
Reply With Quote
